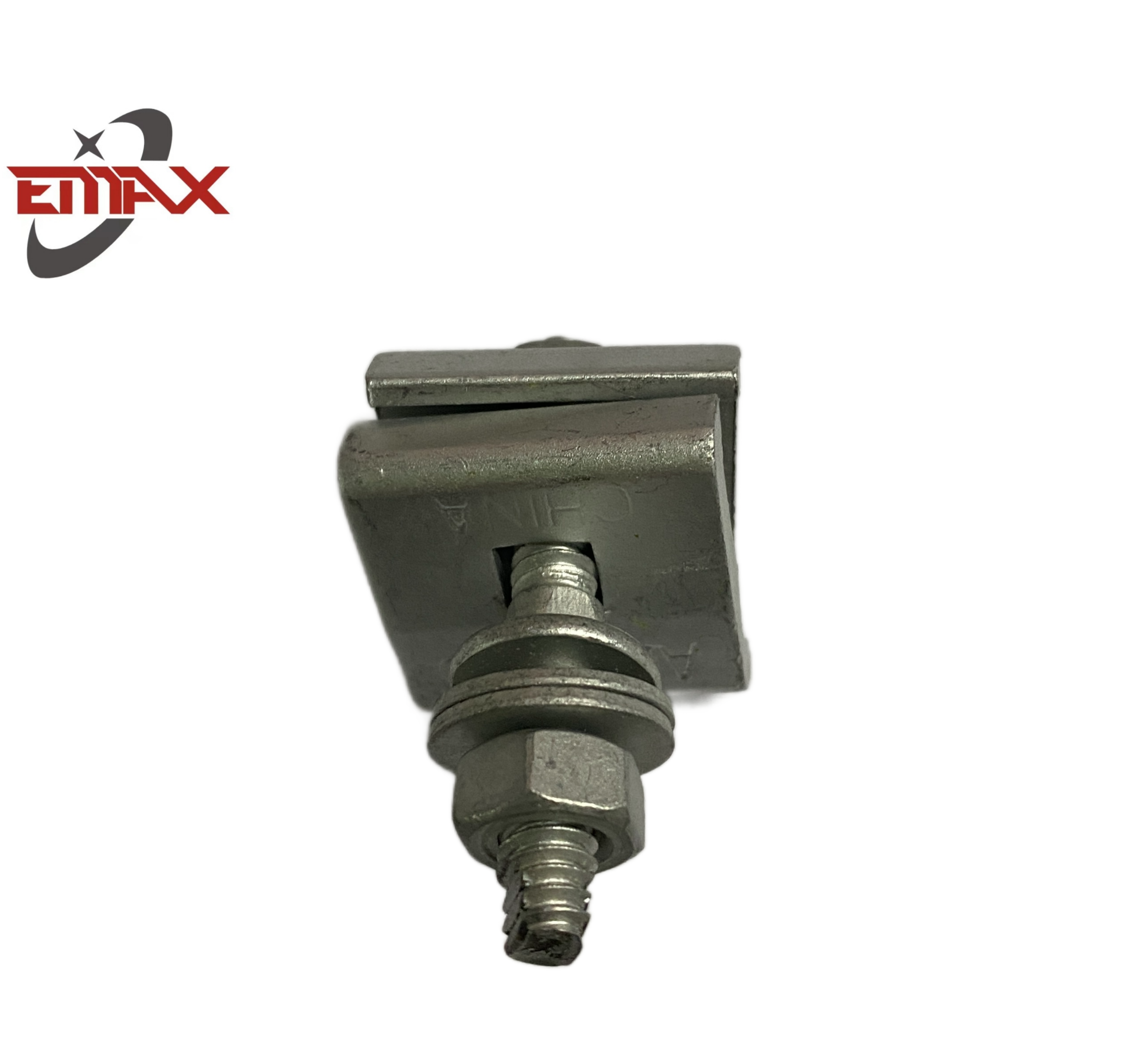

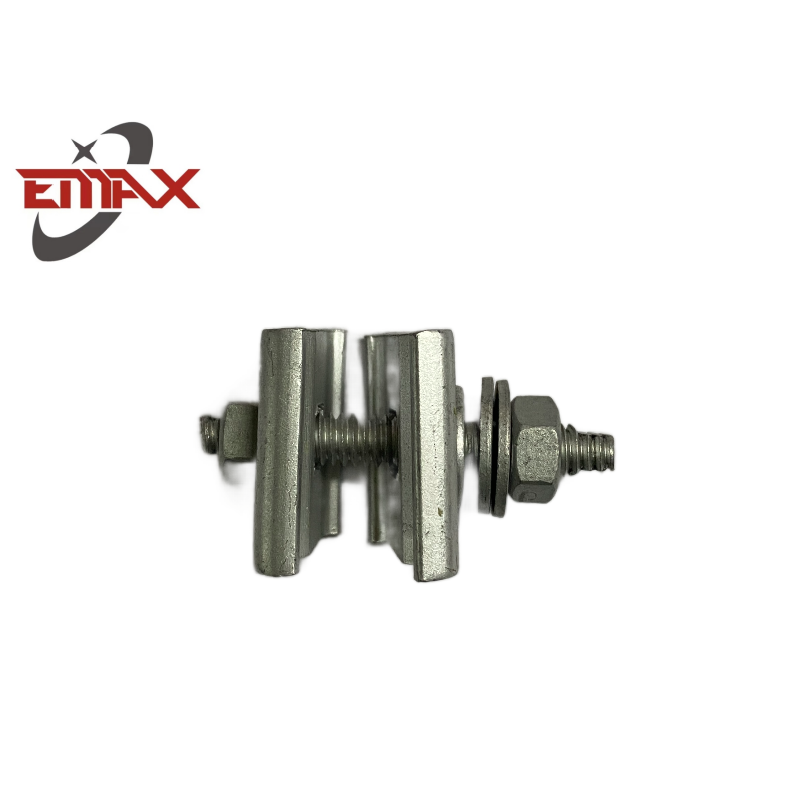

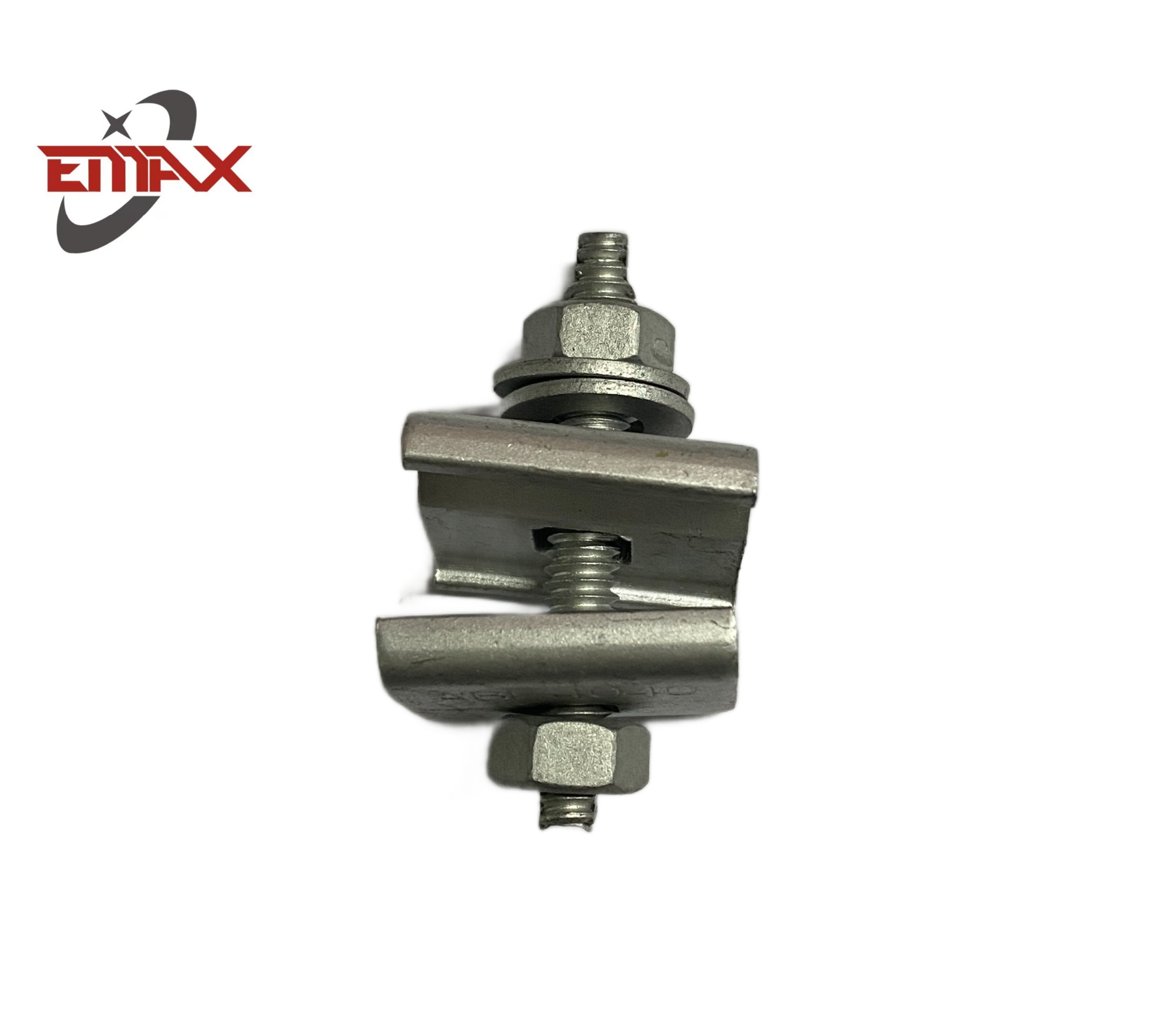

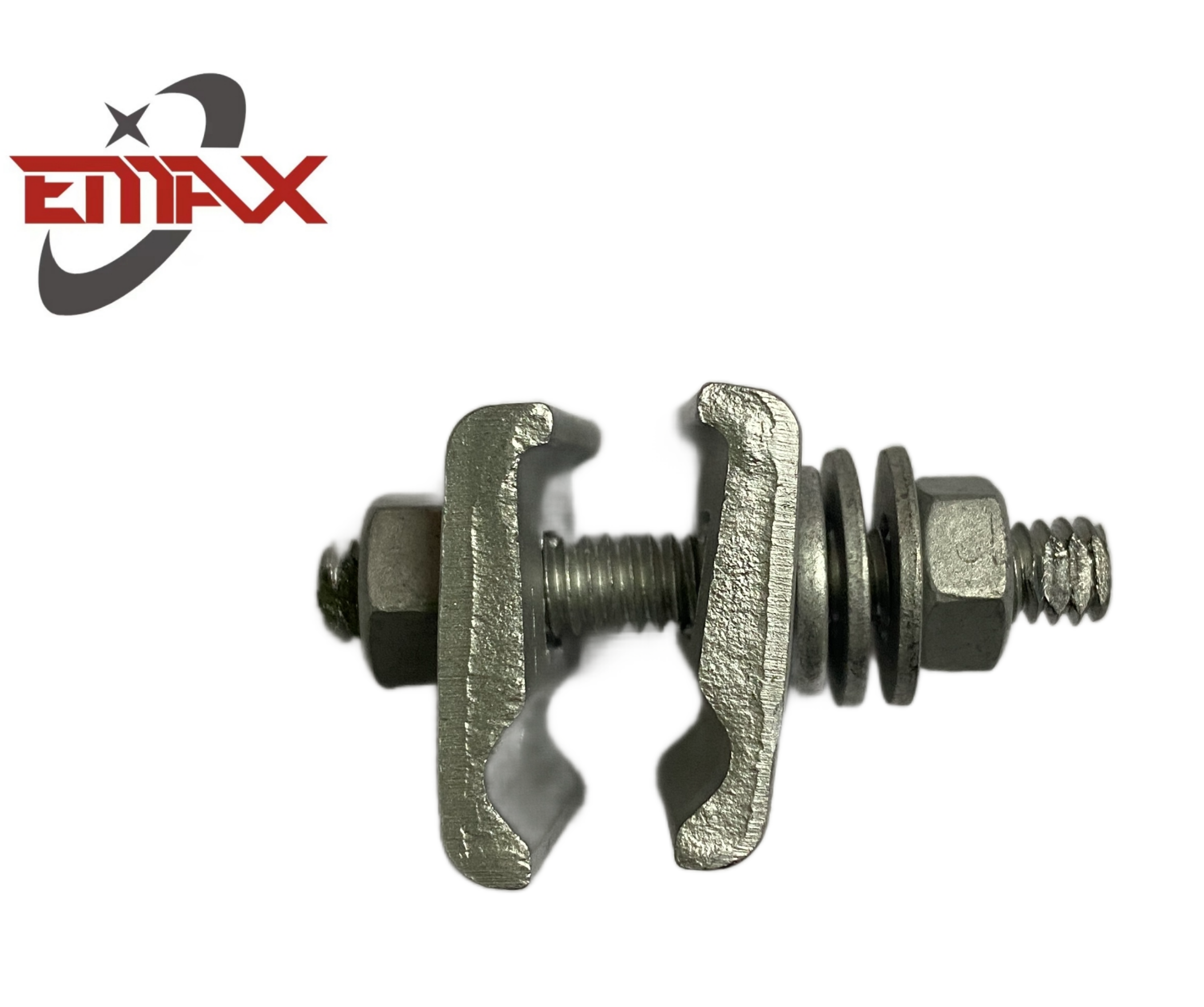

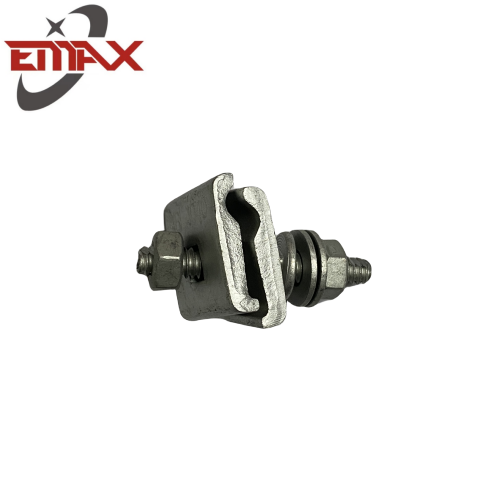

Aerial Drop Hardware D Cable Lashing Clamp

Used in aerial construction to secure terminating lashing wire or ground wire to a strand.
Tensile strength of the jaws exceeds 50,000 PSI.
Terminal ends of stud are staked to prevent disassembly during shipping and installation.
Attaches to strand ranging in size from 1/4"(6.6M) to 7/16"(16M).
The jaws are rolled and stamped from annealed 1018 Steel.
The stud of the D Cable Lashing Clamp is formed from Grade 5 Steel.
All components of D Cable Lashing Clamps are mechanically galvanized to meet ASTM Specification B695.
The Stainless Steel Lashing Clamp is comprised of a stud, two washers, and two nuts manufactured in 304 Stainless Steel, along with a set of mechanically galvanized steel jaws.
