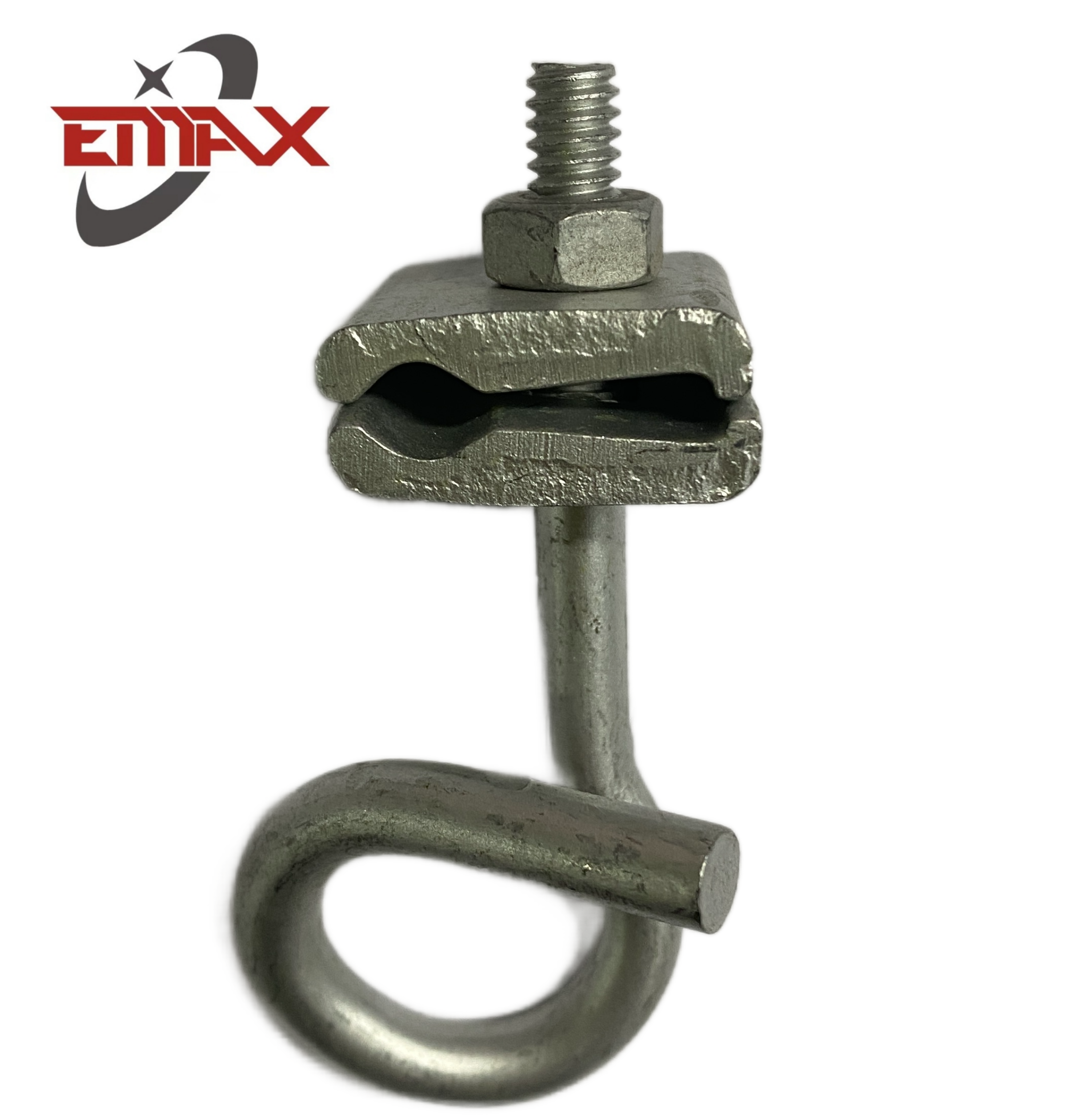

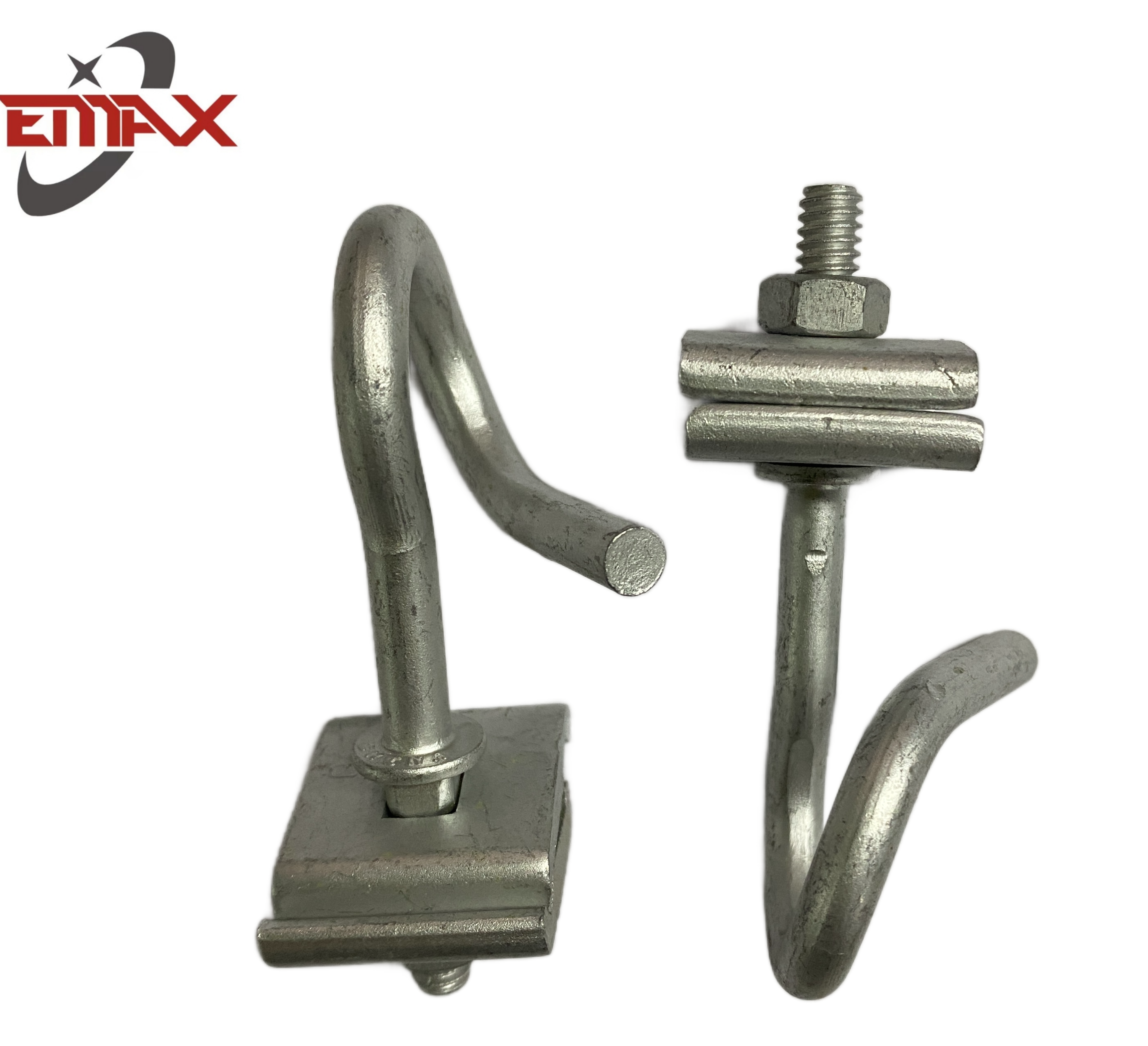

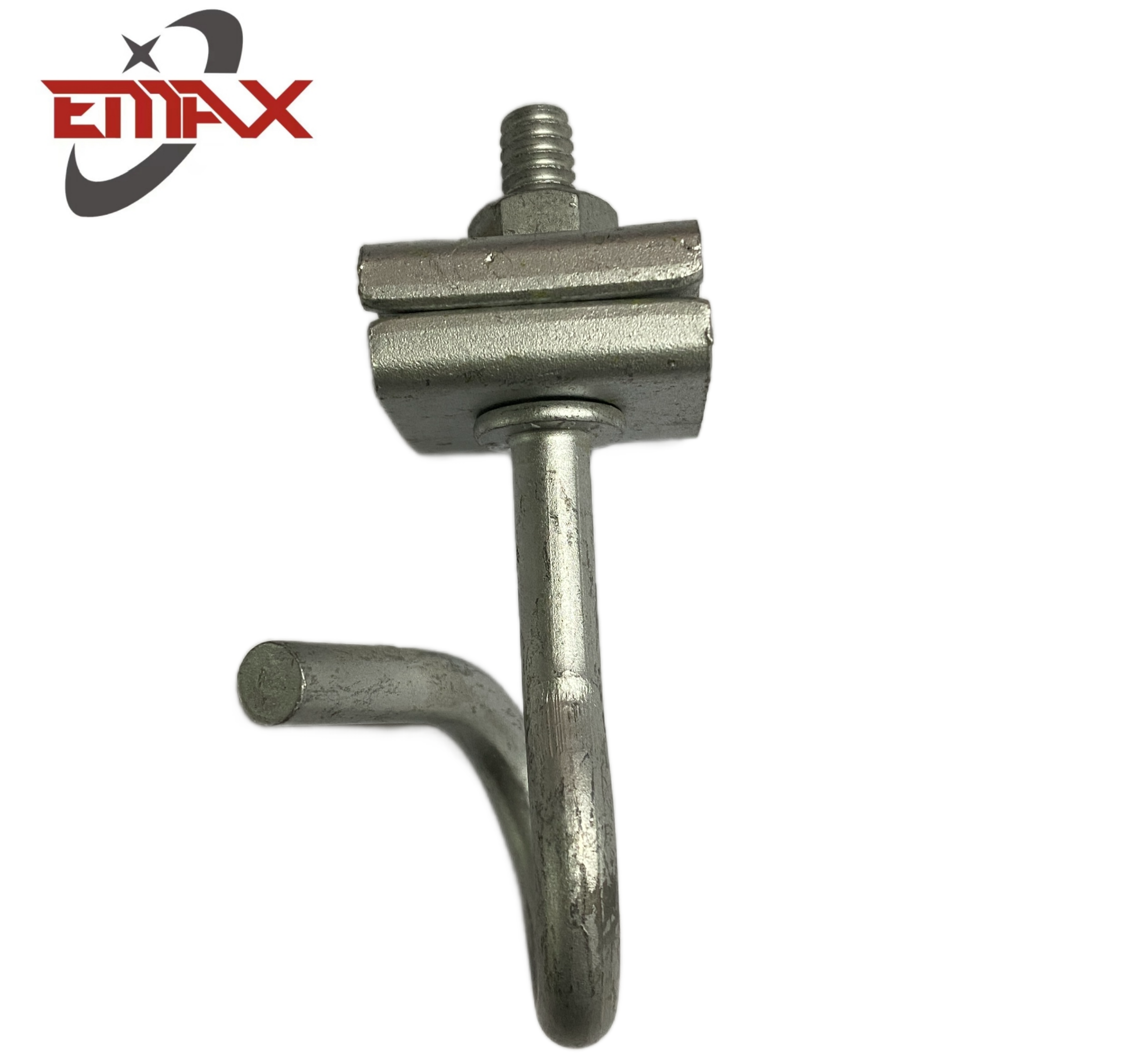

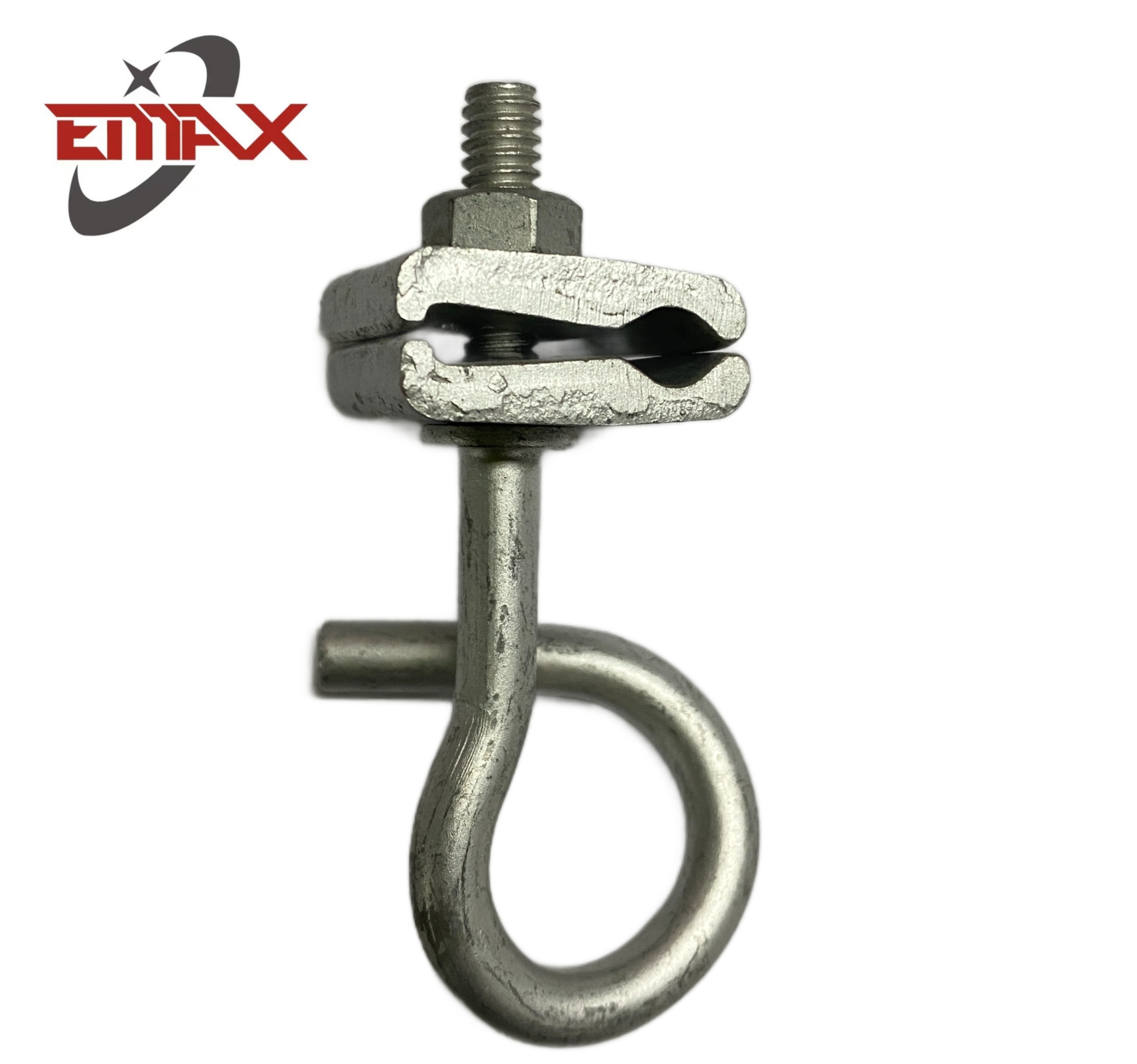

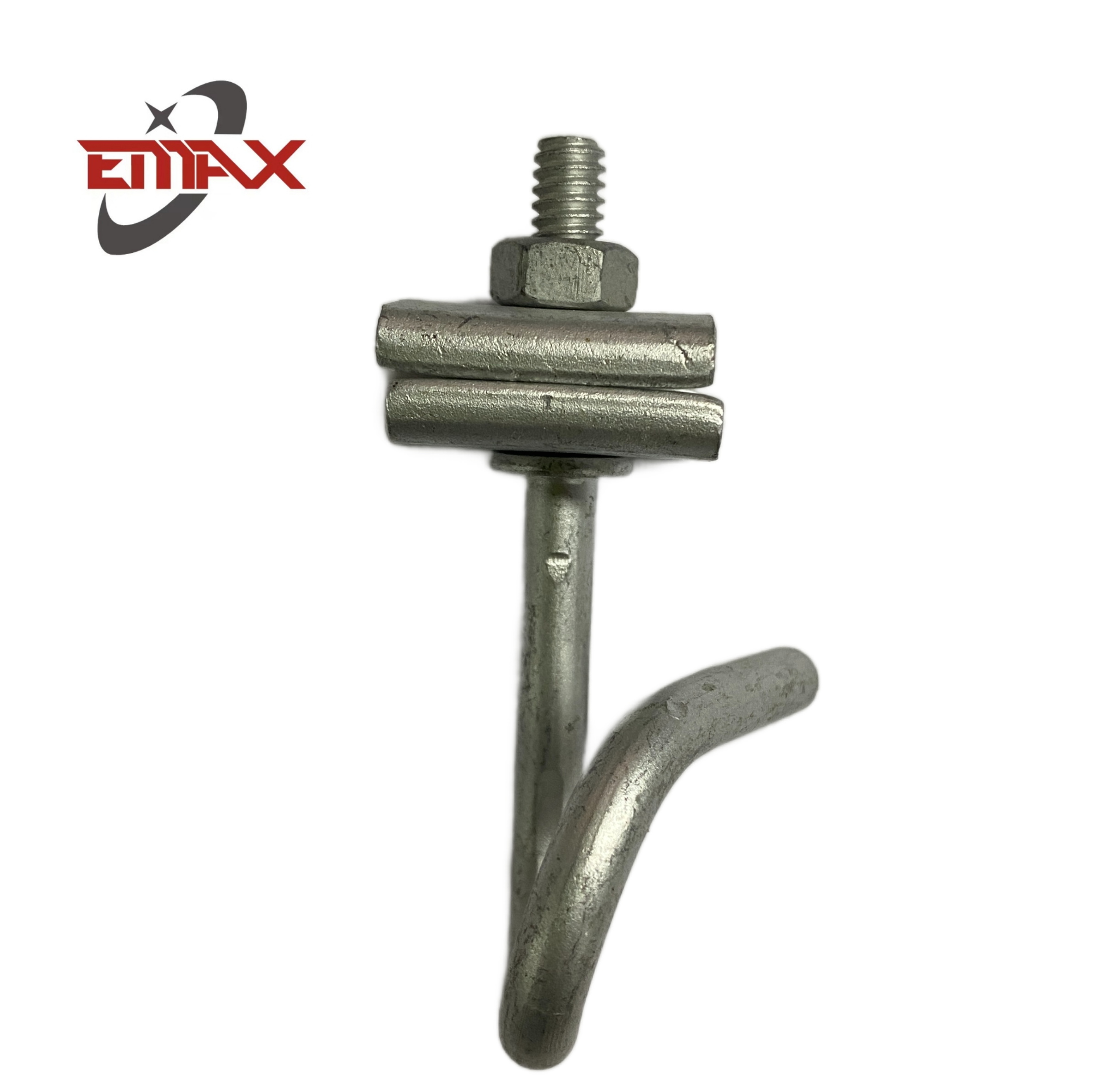

Aerial Drop Hardware Q Span Clamp

Used in drop cable installations as an attachment to strand for either accepting the bail of drop wire clamps, or for wrapping the support wire of drop cable.
Clamp consists of a set of steel jaws, a 1/4" diameter “pig-tail” shaped bolt, and a hex nut.
The jaws are rolled and stamped from AISI 1018 tempered steel.
The bolt and hex nut are formed from Grade 2 Steel.
Nut and bolt are hot dip galvanized to meet ASTM Specification A153.
Jaws are mechanically galvanized to meet ASTM Specification B695.
Attaches to strand ranging in size from 1/4" (6.6m) to 7/16"(16m).
