Emax
Product Description:
Product Overview:

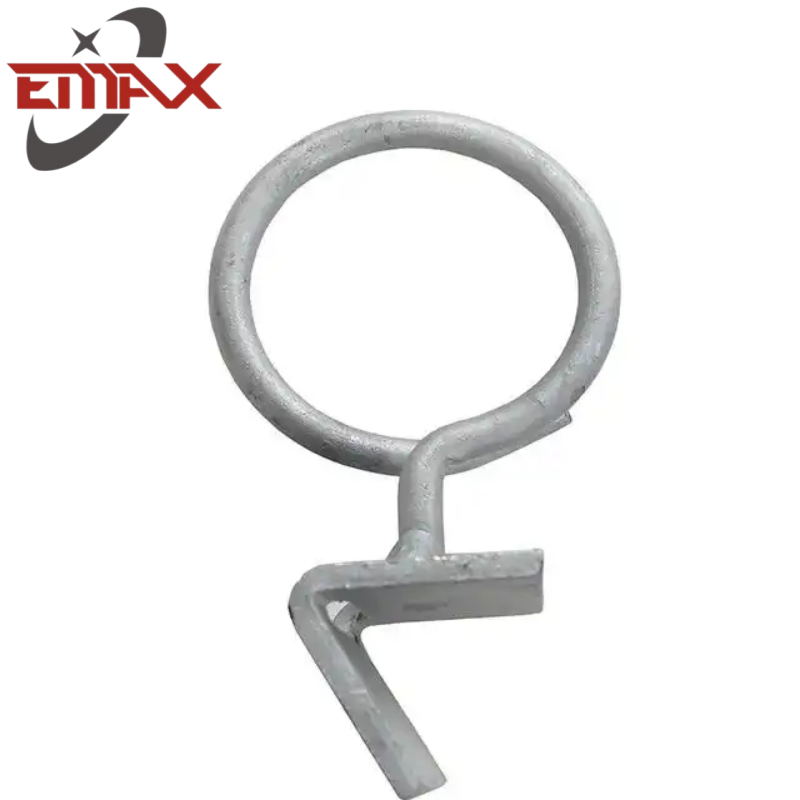

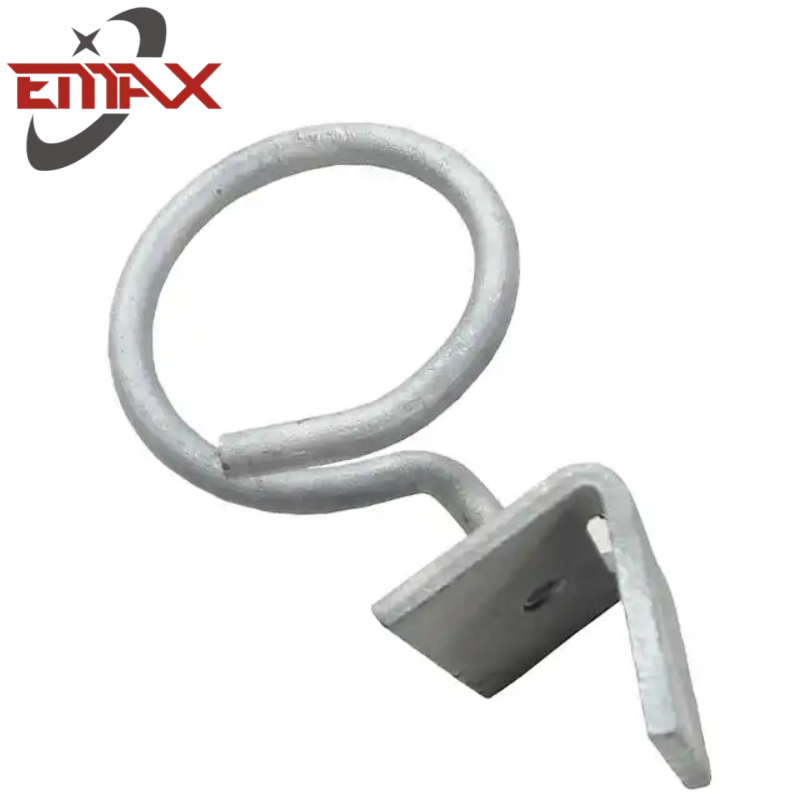

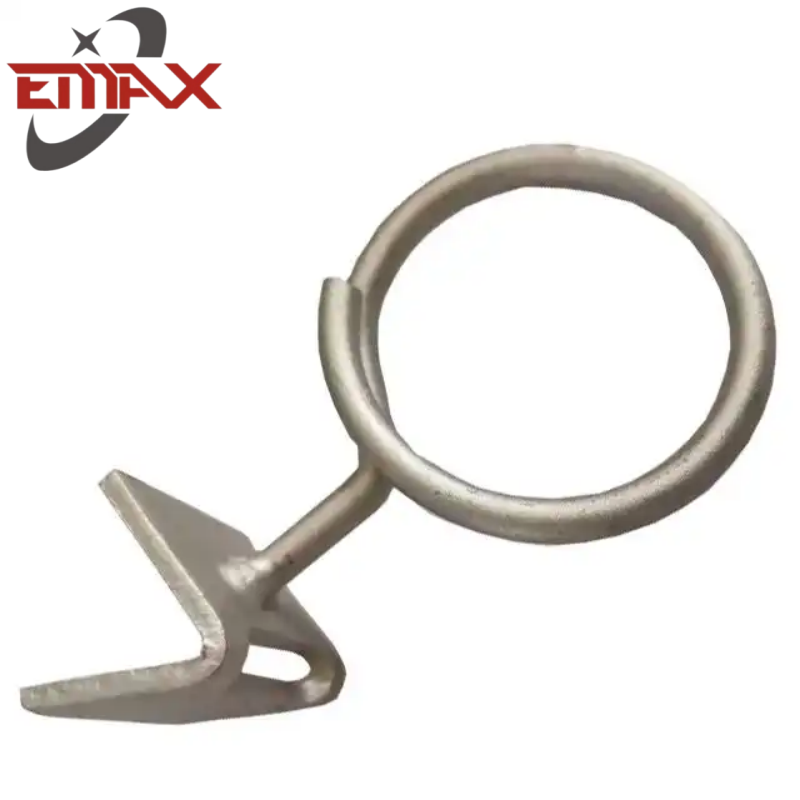

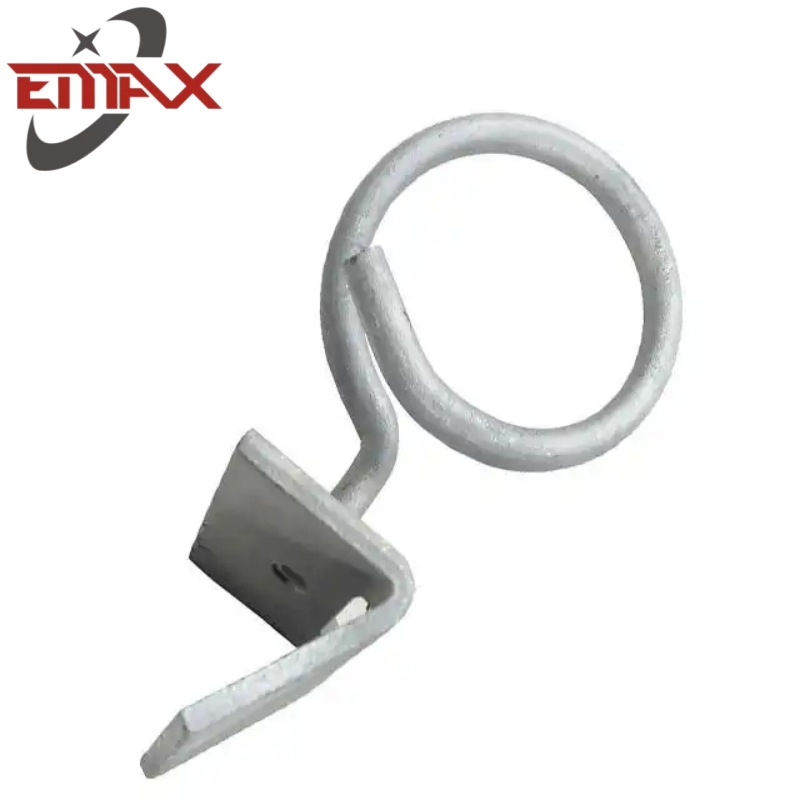

The Hot-dip Galvanized Fiber Optic Bridle Ring is a heavy-duty corrosion-resistant component designed for securing and supporting fiber optic cables in power transmission systems. Manufactured from high-strength carbon steel and coated with a thick zinc layer through hot-dip galvanization, it ensures long-term durability in harsh environments, including coastal, industrial, and high-humidity areas.
Key Features:
Superior Corrosion Resistance
Hot-dip galvanized coating (≥85μm) meets ASTM A153/A123 standards, providing >50 years of rust protection.
Zinc layer forms a metallurgical bond with steel, preventing peeling even under mechanical stress.
Optimized Mechanical Performance
Load capacity: 4.5 kN (static) / 2.0 kN (dynamic) per ANSI/TIA-222-H.
Smooth radius design (R≥30mm) prevents cable abrasion.
Versatile Compatibility
Fits ADSS/OPGW cables (diameter range: 8–20mm).
Compatible with crossarms, poles, and lattice towers (M10/M12 bolt holes).
Applications:
Overhead power line communication networks
Substation fiber optic routing
Railway/utility OPGW installations
Standards Compliance:
IEEE 1138 (Fiber Optic Cable Hardware)
IEC 61284 (Overhead Line Fittings)
Packaging:
Bulk packed in wooden crates (50pcs/crate) with anti-scratch separators.
Custom OEM markings available.
Email: jane@emaxmetal.com
