Product Description:

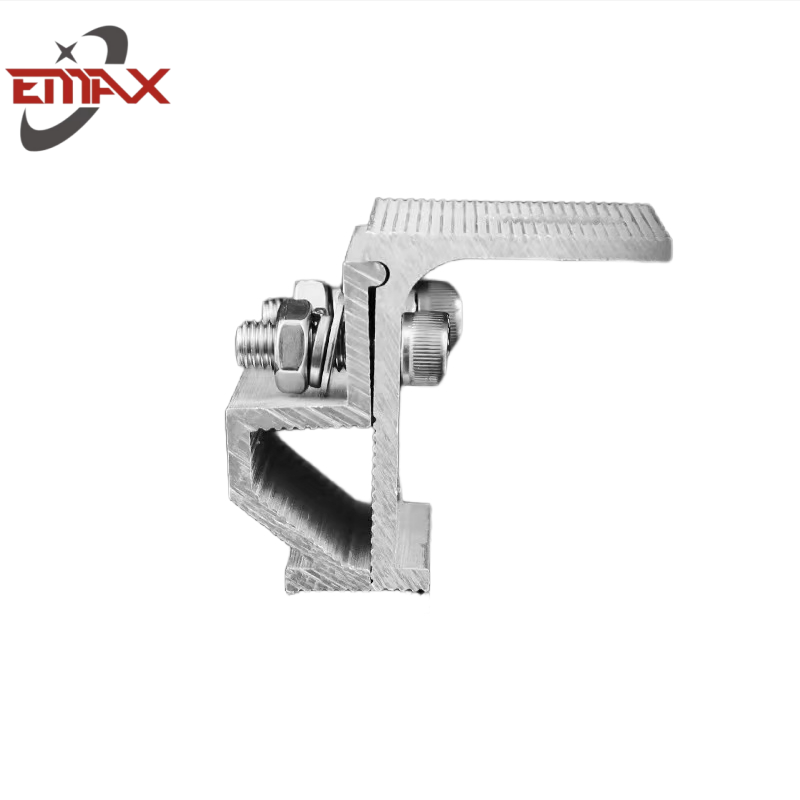

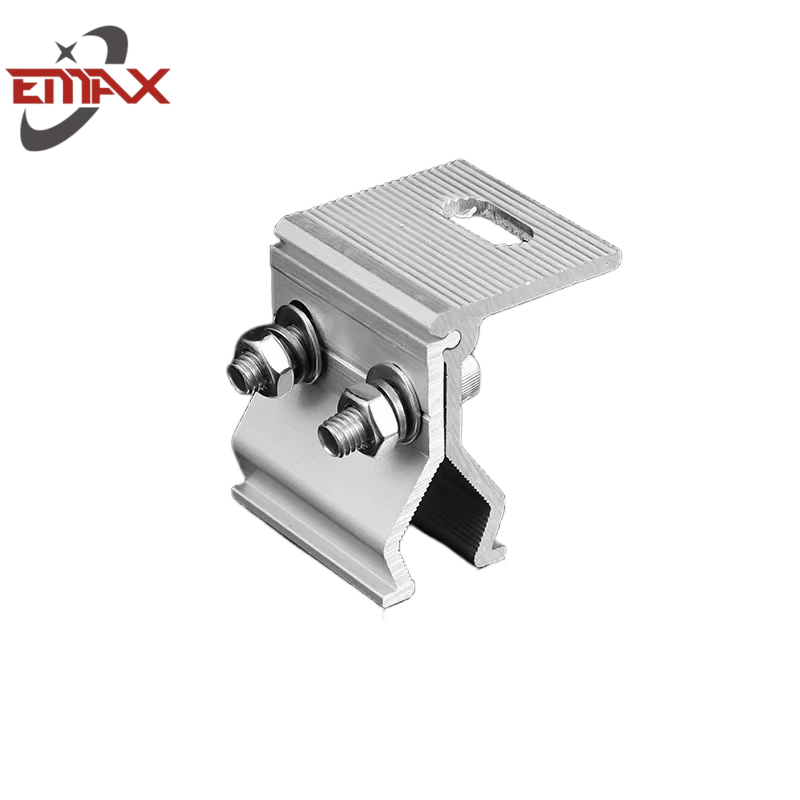

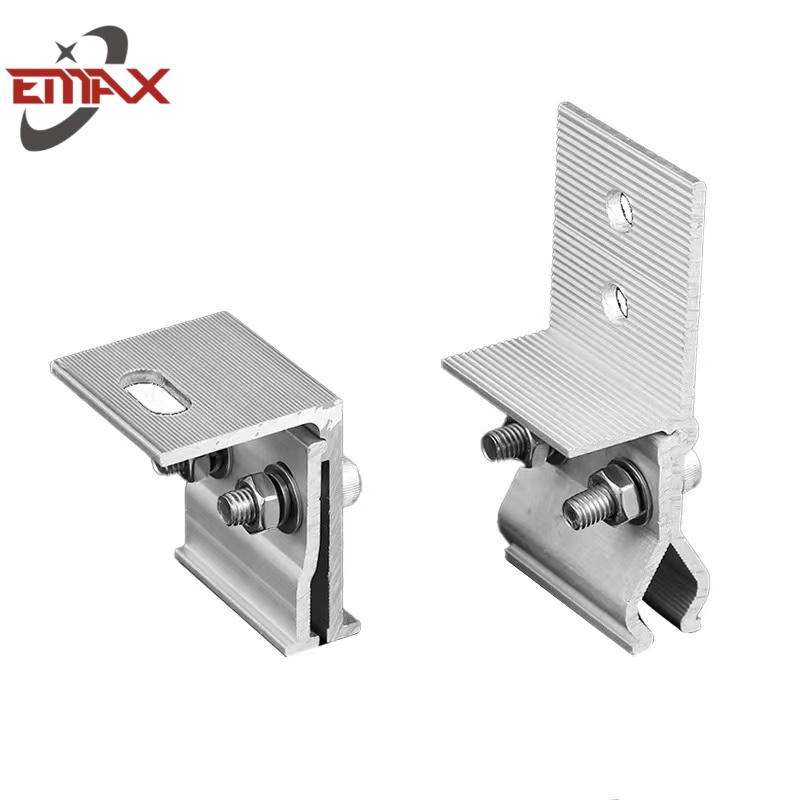

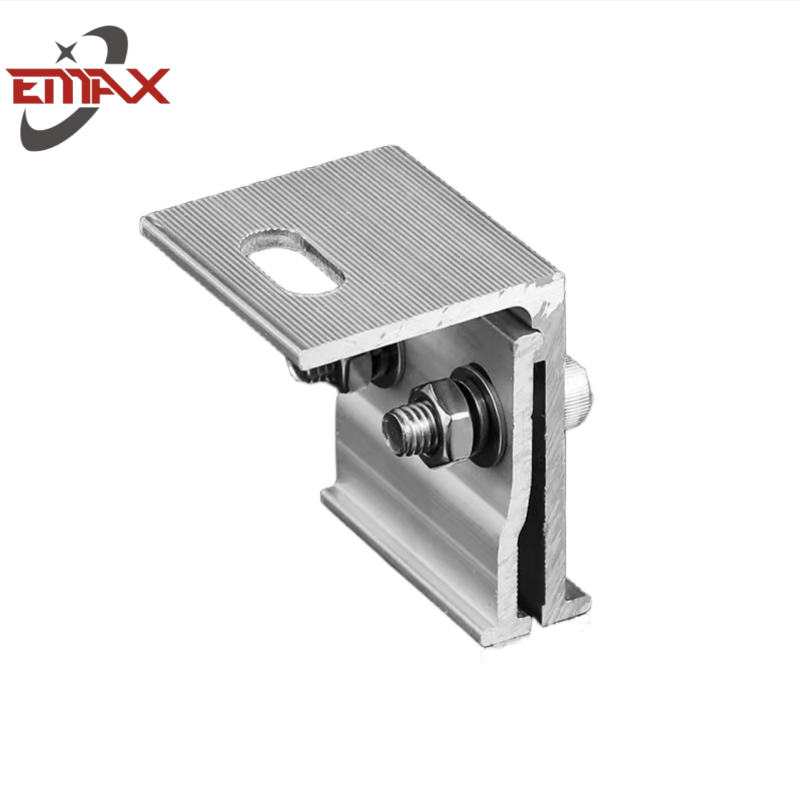

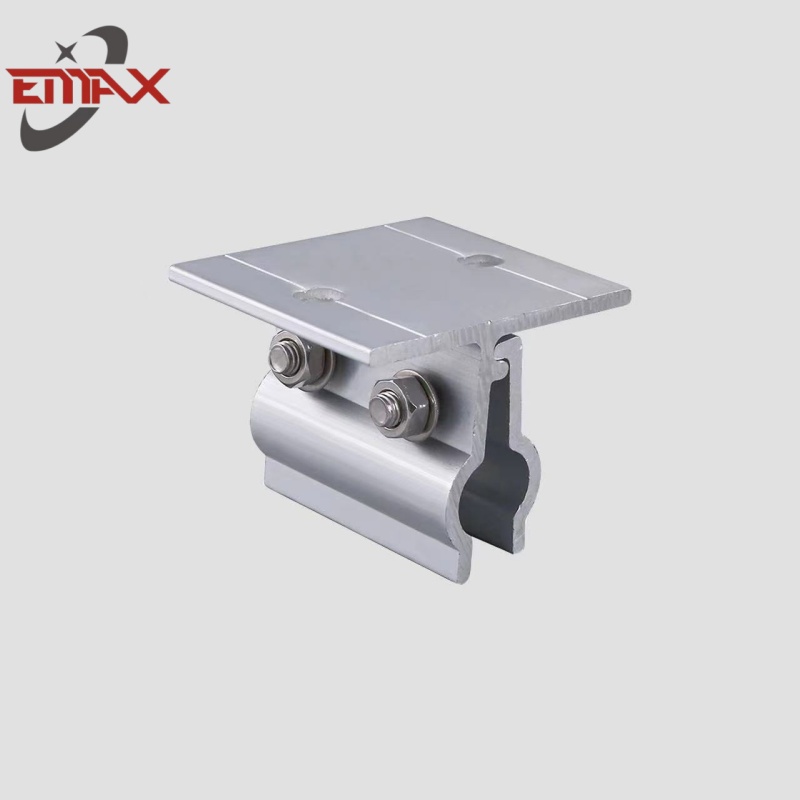

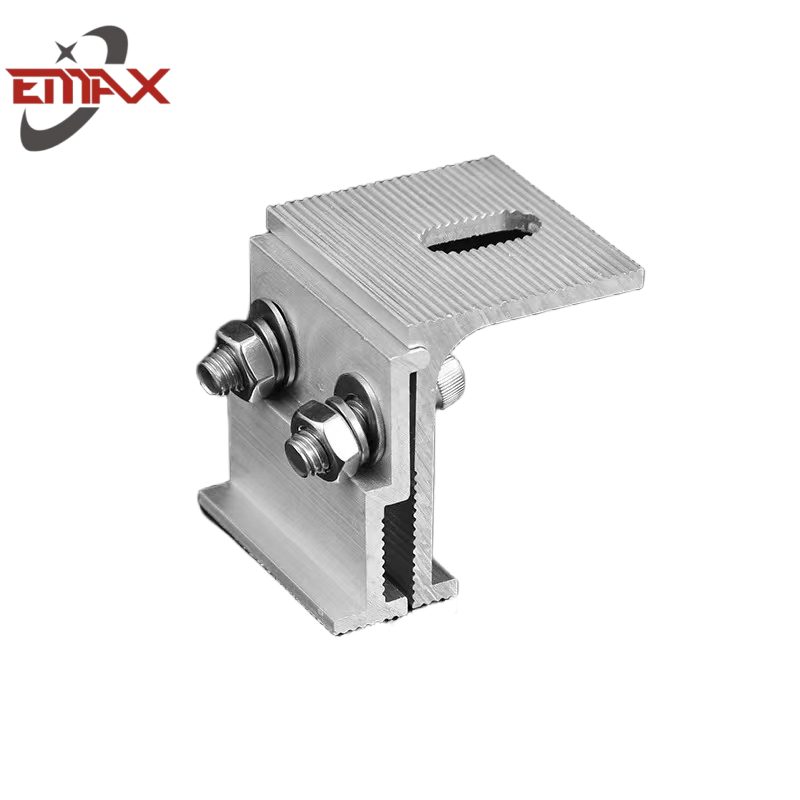

PV Mounting System Universal Clamp
Universal clamps aren't mere hardware - they're precision-engineered stress distributors. Designed to secure panels without inducing microcracks, these clamps feature dual-pressure zones: a rigid aluminum core for structural grip, paired with EPDM-lined contact points that absorb thermal expansion forces. Unlike generic brackets that concentrate stress at bolt points, our tapered design spreads loads across 70% of the panel frame.
We machine clamps to match your module's thickness (1.4mm to 4mm frames) and coating type - anodized jaws for bare aluminum frames, copper-free alloys to prevent galvanic corrosion on coated steel. For frameless glass-glass panels, our hybrid clamps use vacuum-sealed silicone pads rated for 35-year UV resistance.
Customization runs deep. Reverse-engineer existing systems? We'll replicate rail profiles within 0.2mm accuracy. Need seismic compliance? Our California-tested models handle 0.8g lateral loads without twisting panel corners. Recently developed asymmetric clamps for tilted carport arrays, eliminating the need for shims.
Every clamp batch undergoes IEC 61215 sequence tests - 1,200 thermal cycles (-40°C to +85°C) and 1,000Nm mechanical loading. Make sure the clamp can fix the photovoltaic panel without squeezing it and causing cracks. If you need a special installation clamp, we can also make it according to your drawings.
