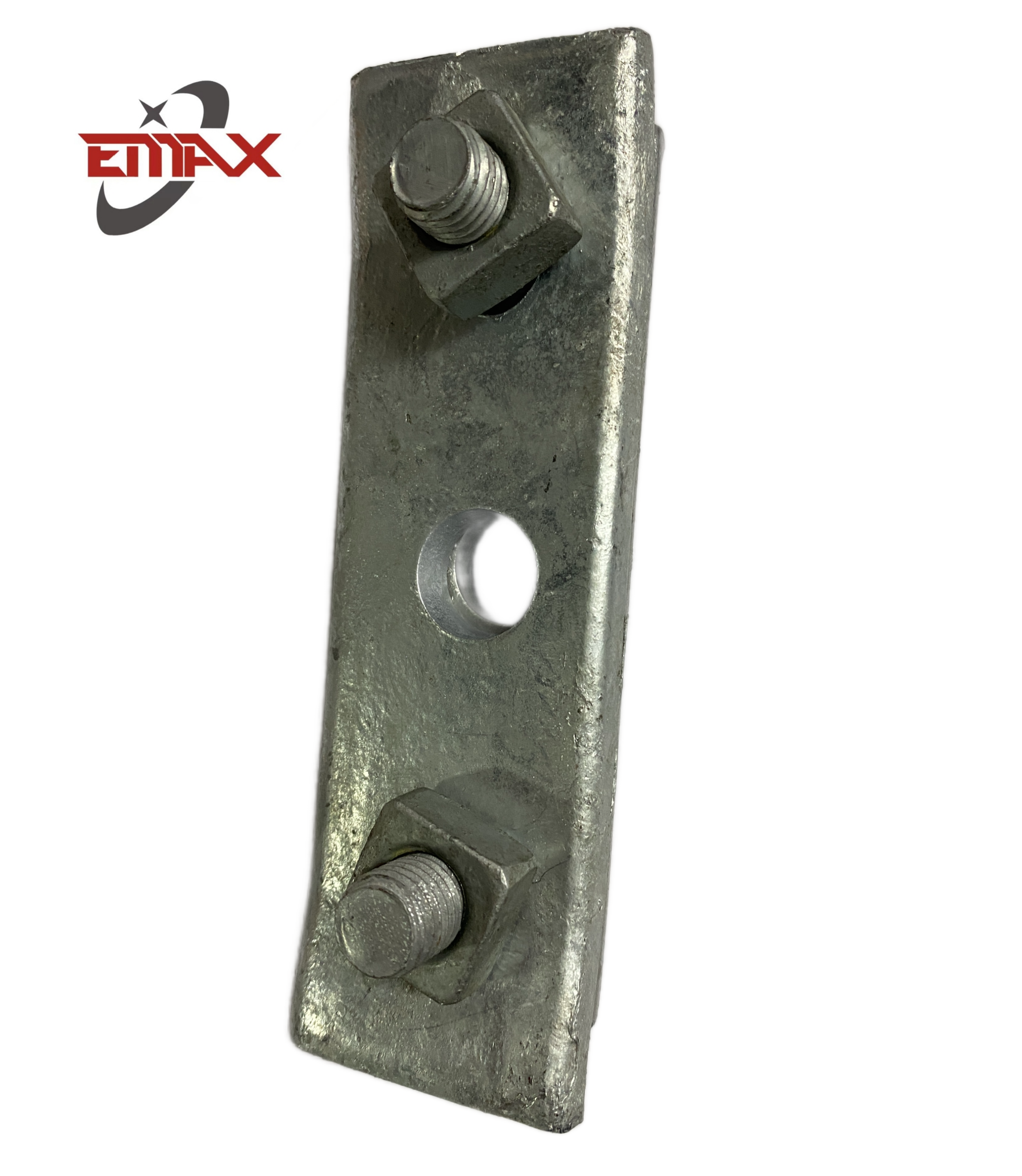

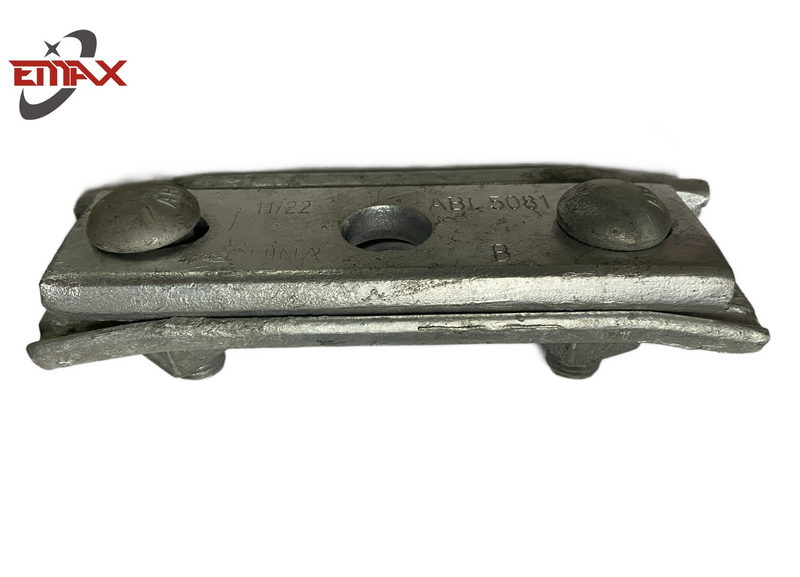

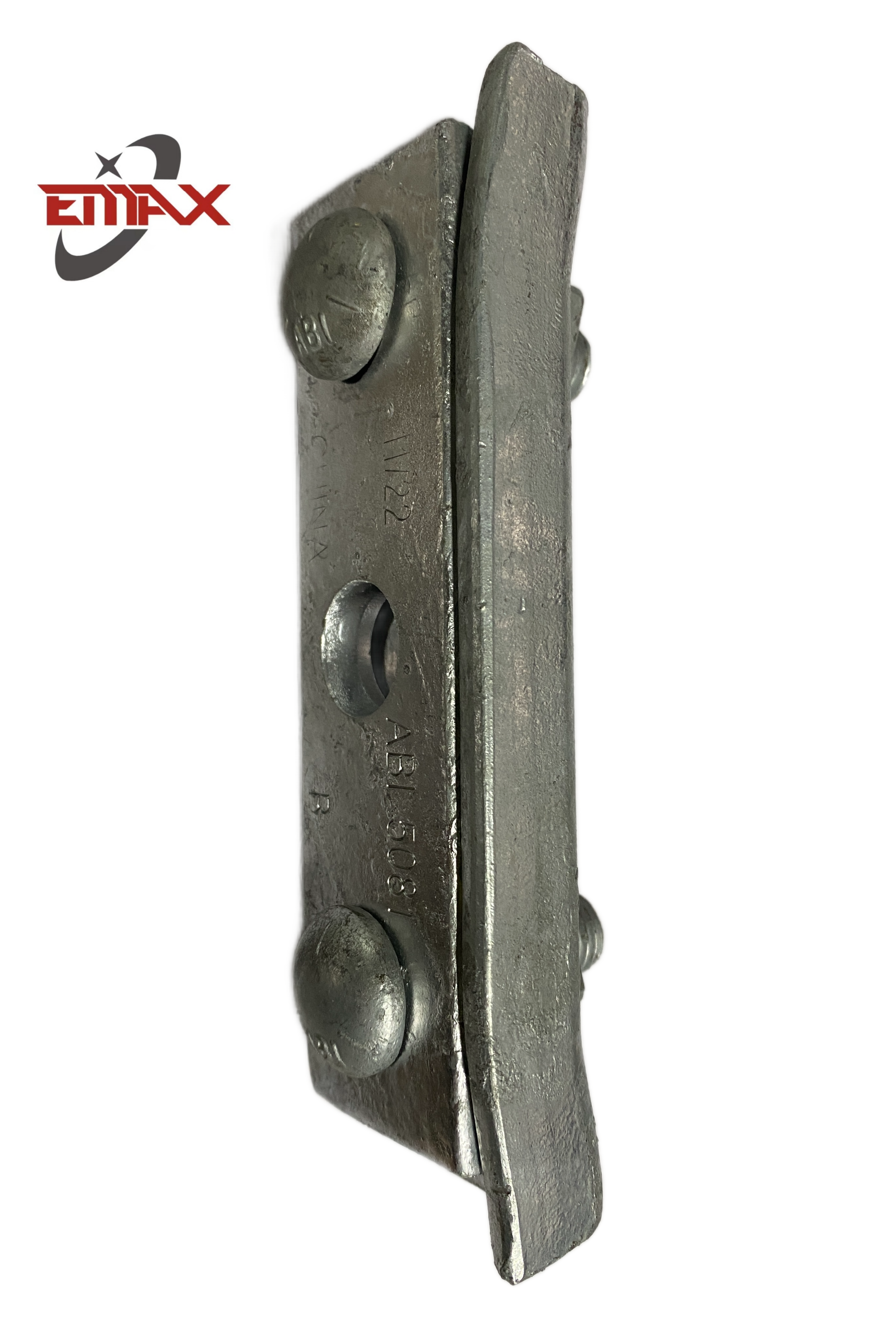

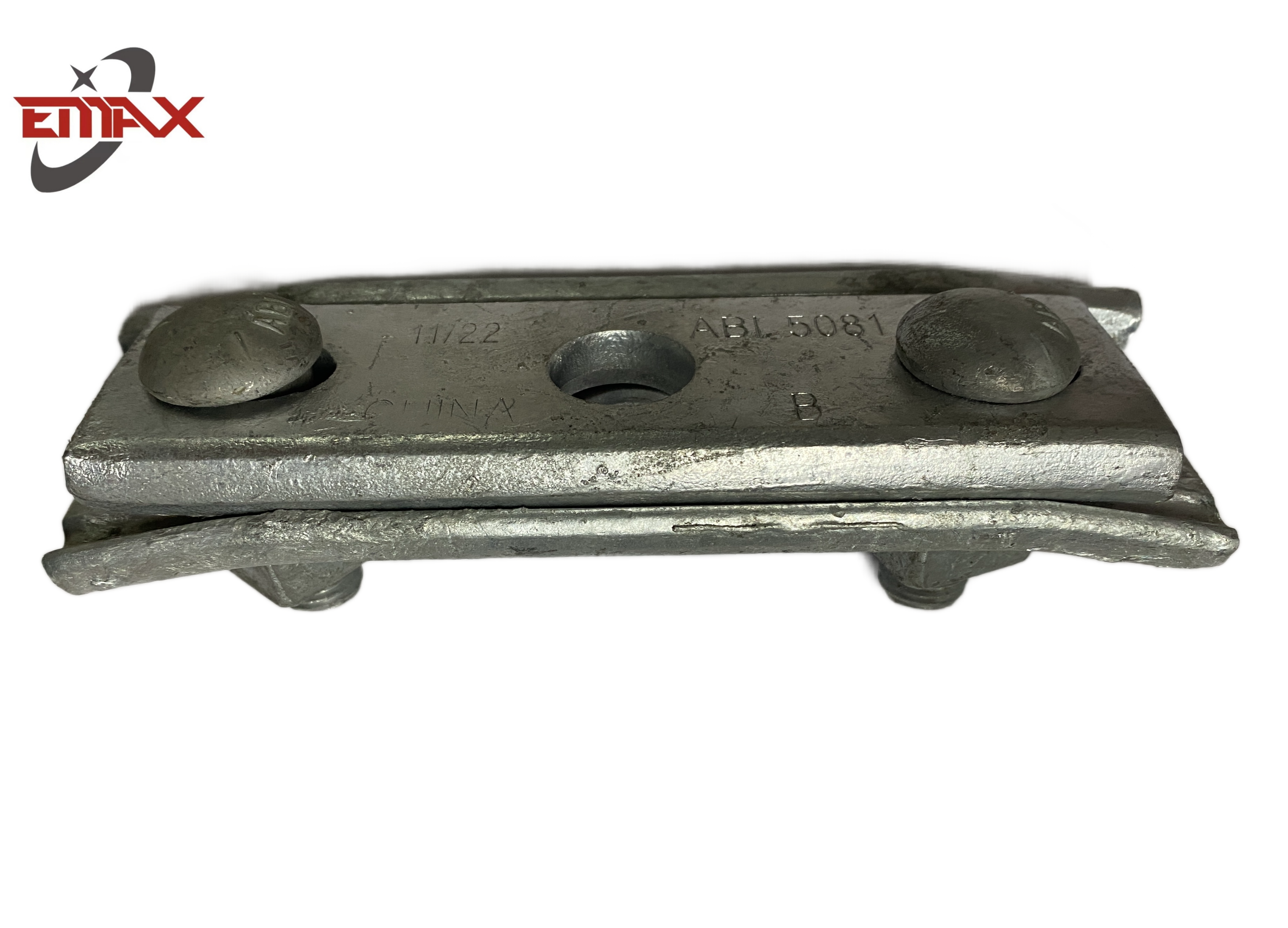

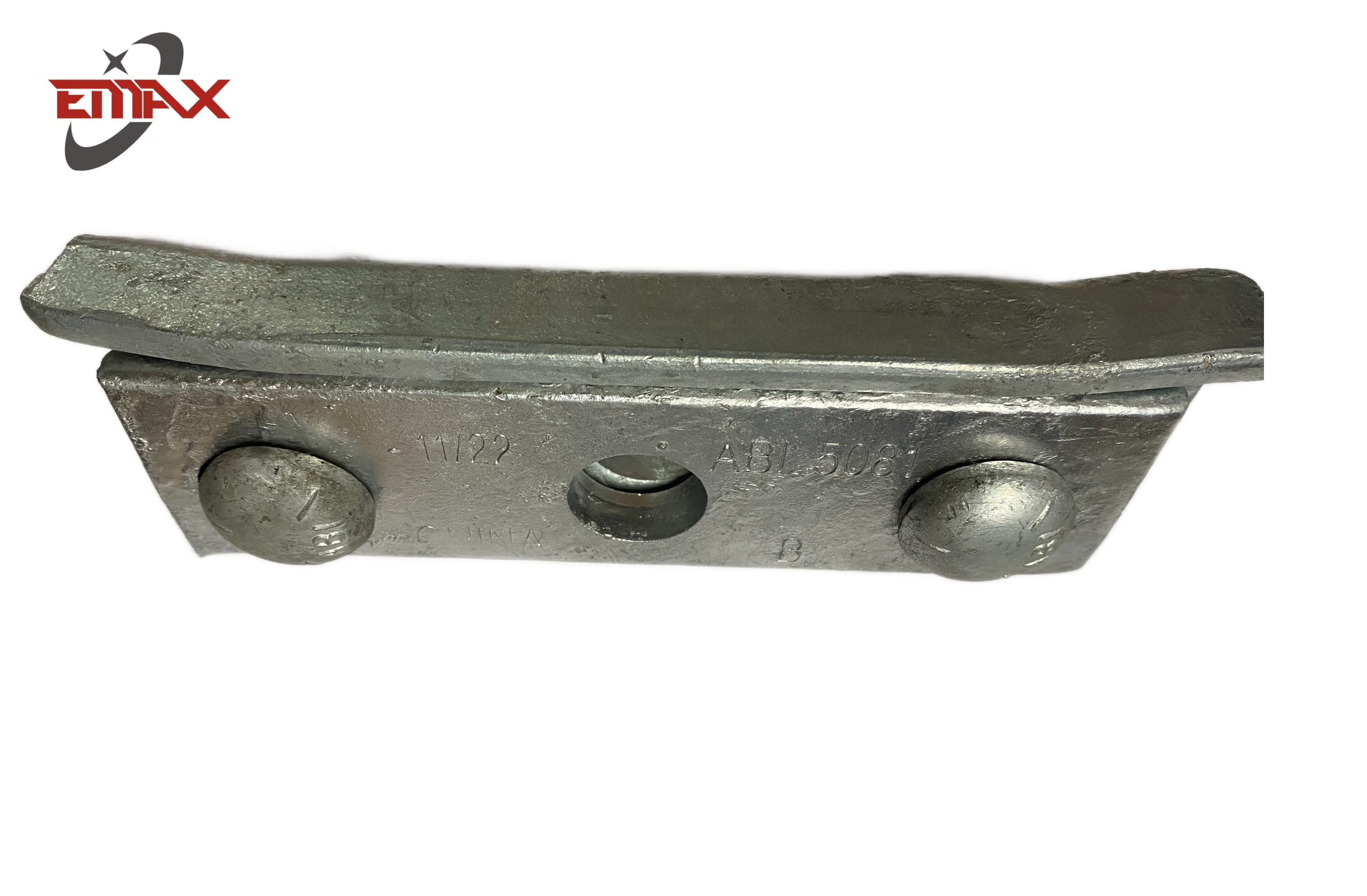

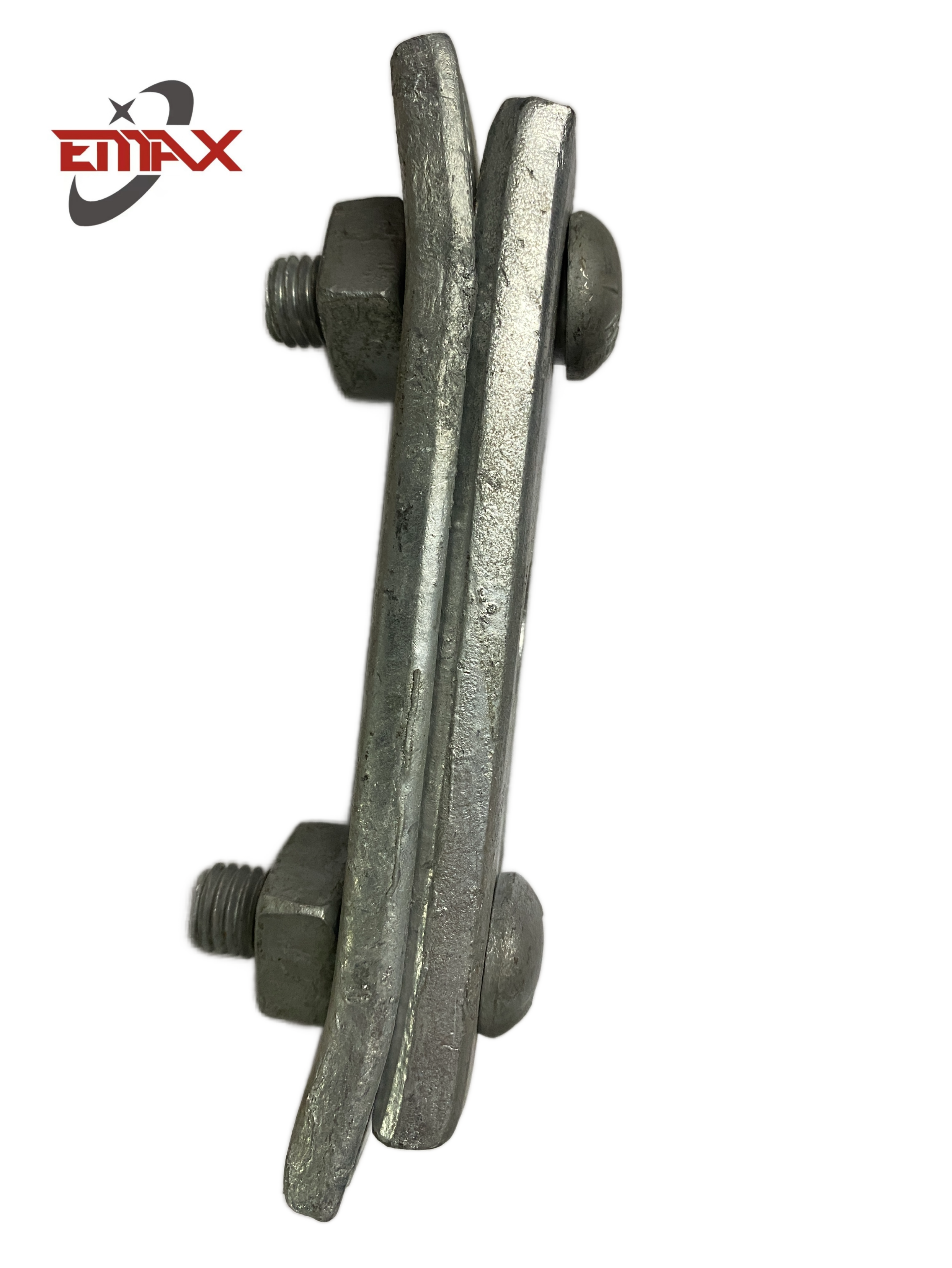

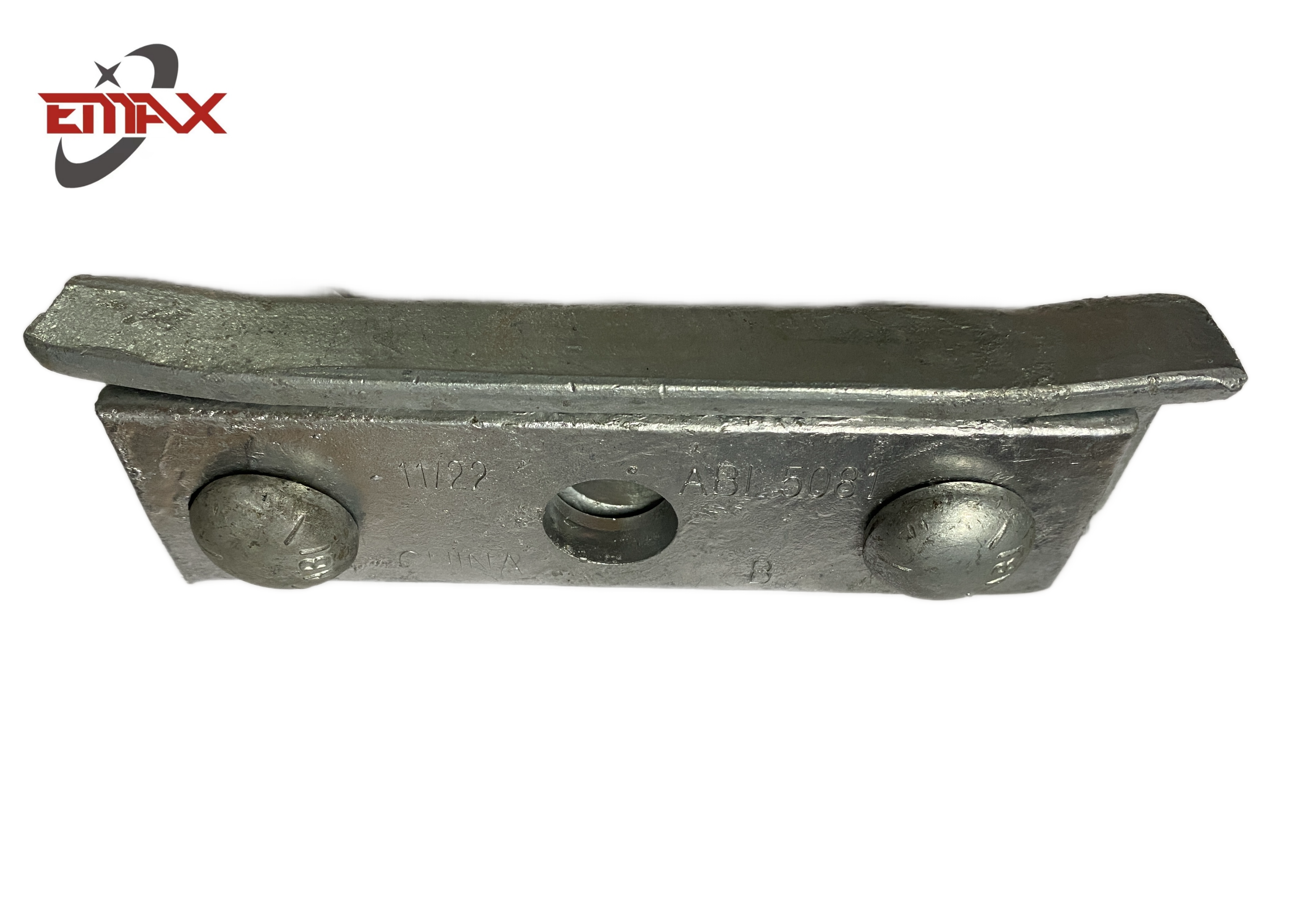

Pole Line Hardware B Corner Suspension Clamp

Used for attaching strand to corner poles.
Accepts 1/4" (6.6m) to 7/16" (16m) strand.
Clamp consists of two mating plates, two 5/8"-11 track bolts with attached square nuts.
Clamp plates are 2-3/16" wide and 7" long.
One plate is flared at each end to facilitate pulling strand through the clamp and has a substantial projecting lip to retain the strand in the grooves.
The center hole on the Corner Suspension Clamp is for use with a 5/8" or 3/4" diameter bolt.
Hot dip galvanized to meet ASTM Specification A153.
