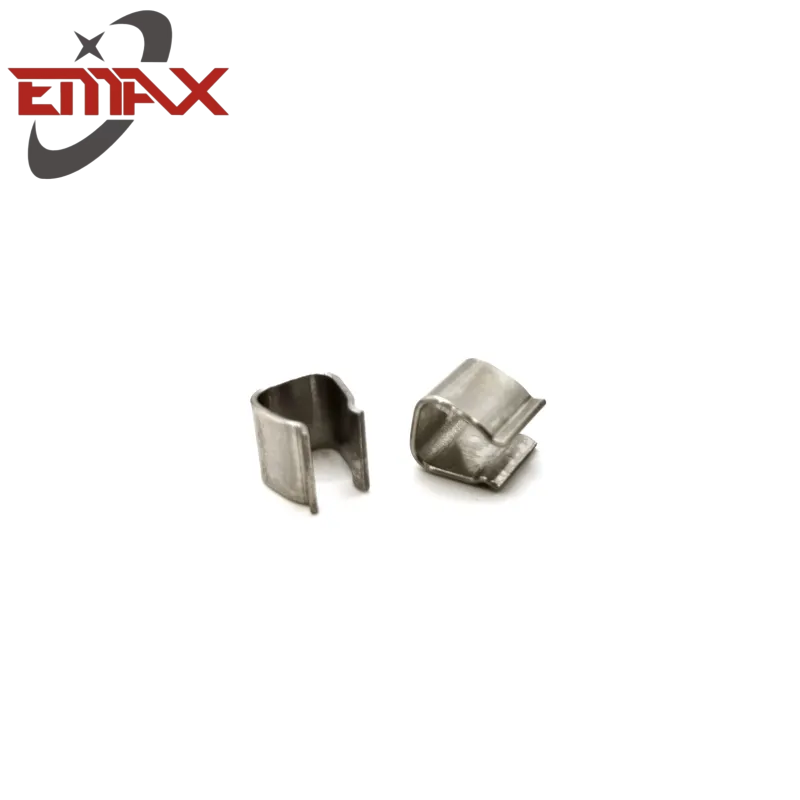

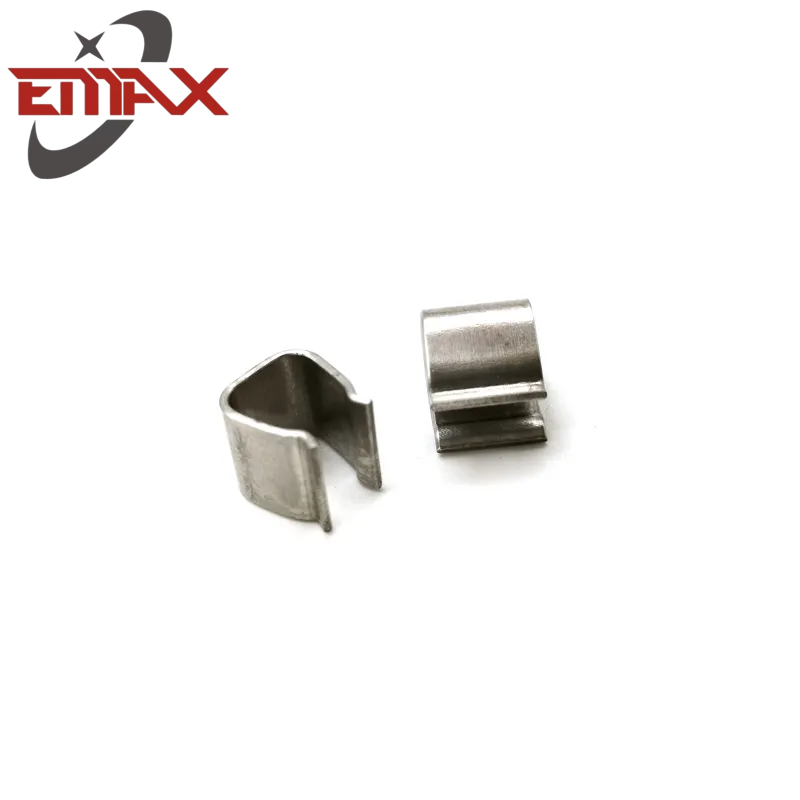

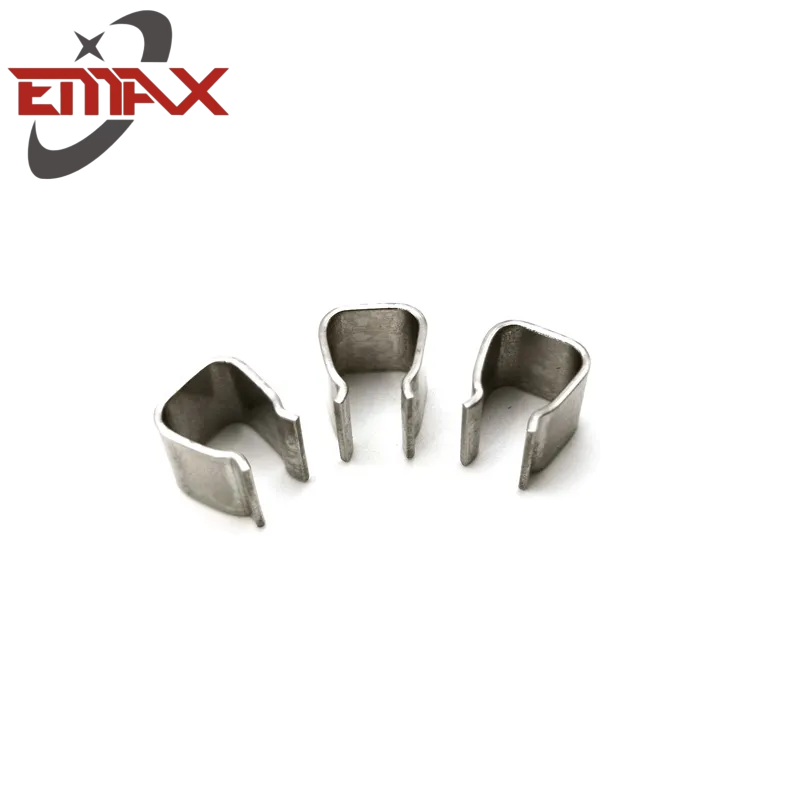

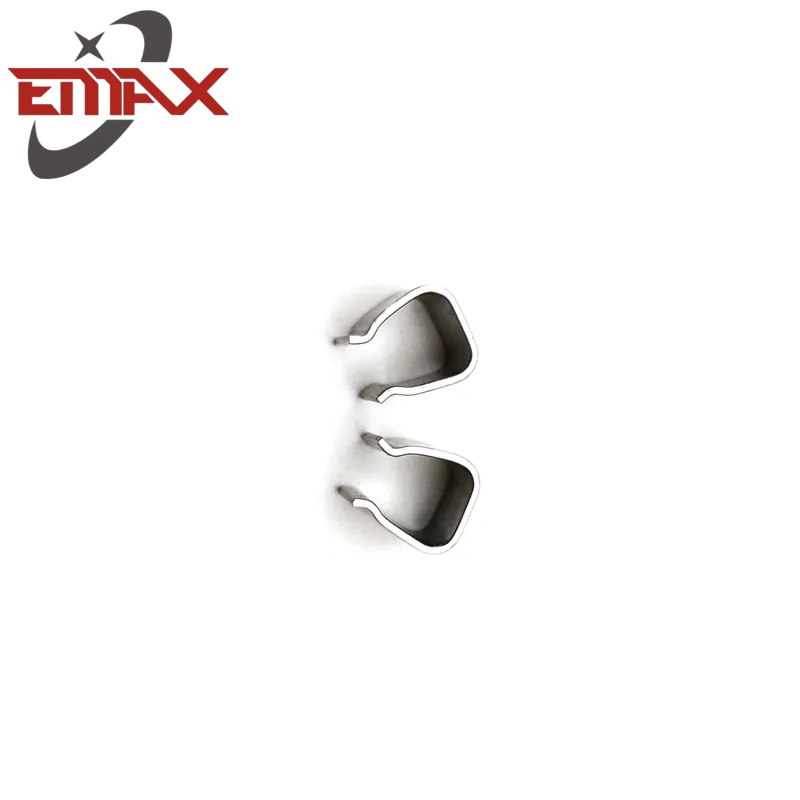

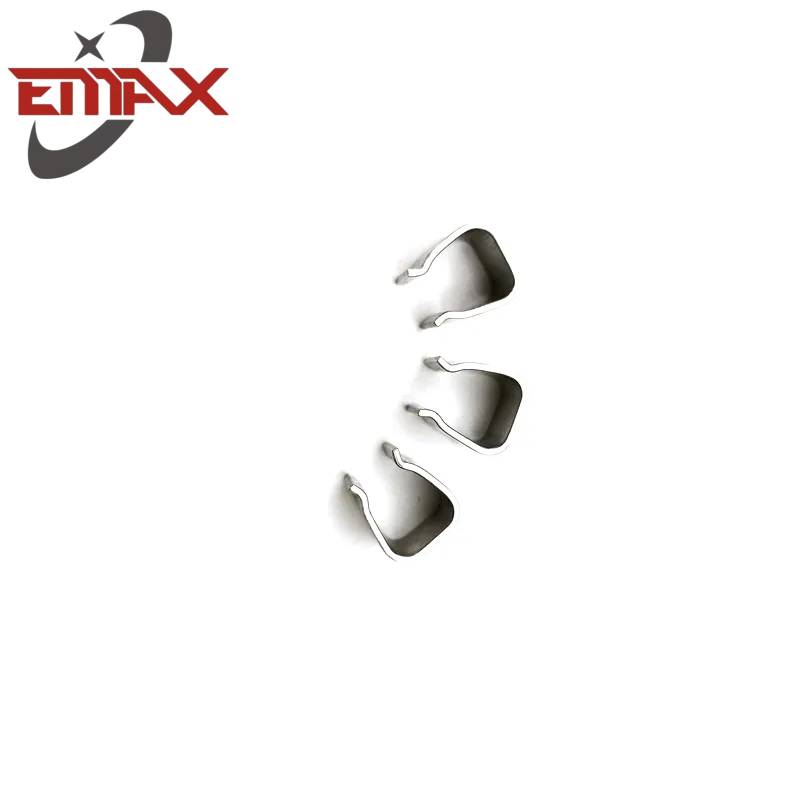

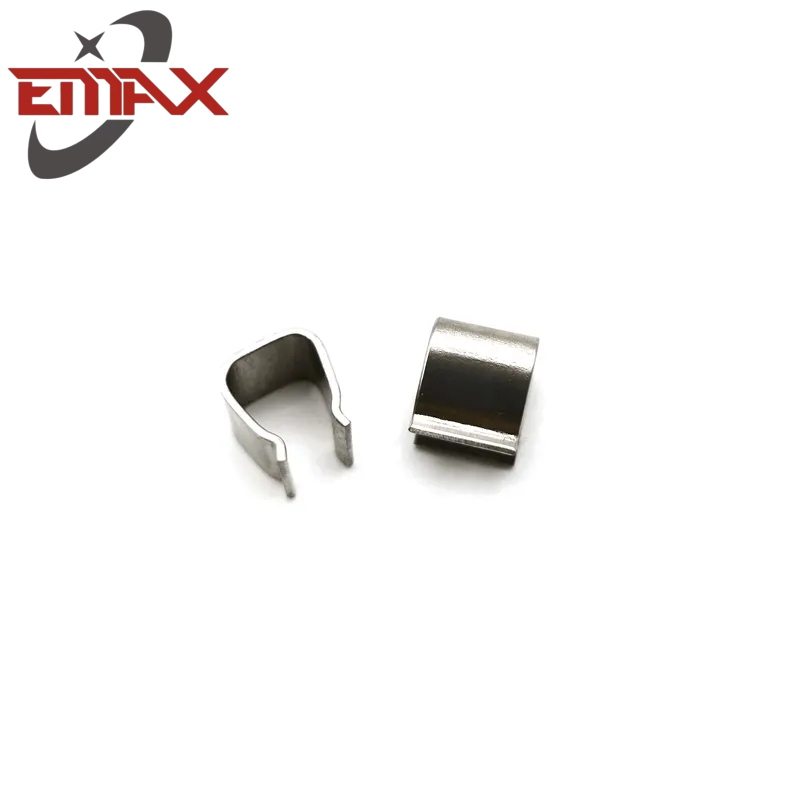

Spring Clip Stamping and Bending: Achieving Metal Fabrication Flexibility through Engineering
Spring clips used for fastening, electrical grounding, and damping of vibrations across different industries rely on precise stamping and bending processes to achieve their functional shape. These parts, which find extensive use in automotive assemblies, electronics, and industrial machinery, need a synergy of durability, flexibility, and dimensional stability.
Manufacturing Workflow
Production begins with high-grade materials like carbon steel, stainless steel, or beryllium copper, selected for tensile strength and fatigue life. Progressive dies in stamping presses pierce out base shape from rolled metal strips, with sensors inside monitoring punch force to prevent micro-cracks. Subsequent bending stations use press brakes controlled by CNC to make precise angles (usually ±0.25° tolerance), so clips maintain consistent springback compensation. For complex profiles, multi-axis robots transfer parts between operations automatically.
Technical Advantages
1. Dimensional Precision: Cutting-edge tooling bends with radii as low as 0.5mm, critical for clips in miniature electronics.
2. High-Speed Production: A single press line can make 1,200+ clips per hour with minimal setup idle time.
3. Material Efficiency: Raw material nesting software optimizes the use of raw material, minimizing scrap rates to below 5%.
Quality Assurance
Post-forming, clips are stress-relief annealed to remove internal deformation. Automated vision inspection checks key parameters such as leg parallelism and surface flatness, rejecting outliers through AI-based defect detection. Automotive-grade clips are tested for corrosion resistance using salt-spray testing up to 500 hours.
Innovation Trends
Innovations include hybrid dies that combine stamping and in-die tapping for threaded clip types. Laser-aided bending, which heats and softens materials locally to reduce springback, is gaining popularity for high-strength alloys. Meanwhile, IoT-linked presses collect data in real-time to predict die wear, saving on maintenance by as much as 20%.
From supporting engine hoses to securing circuit boards, formed and stamped spring clips illustrate how accurate metal forming is the underpinning for modern mechanical designs. As more industries demand thinner, smarter parts, forming advancements will continue to define the limits of clip function and manufacturability.
